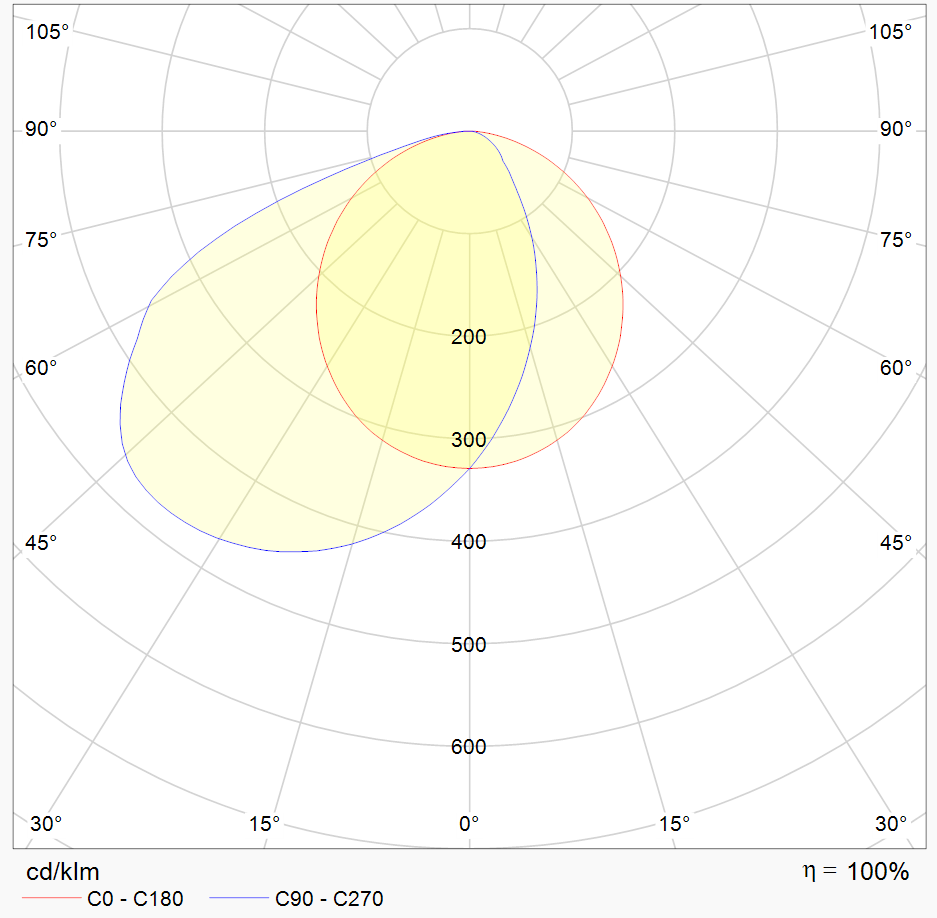

LED Anbauleuchte als Einzelleuchte oder Lichtband, Lichtverteilung asymmetrisch, direkt, stranggepresstes Aluminiumprofil pulverbeschichtet, mit Opaler Abdeckung, Treiber nicht dimmbar im Gehäuse integriert, Farbe weiß RAL 9016

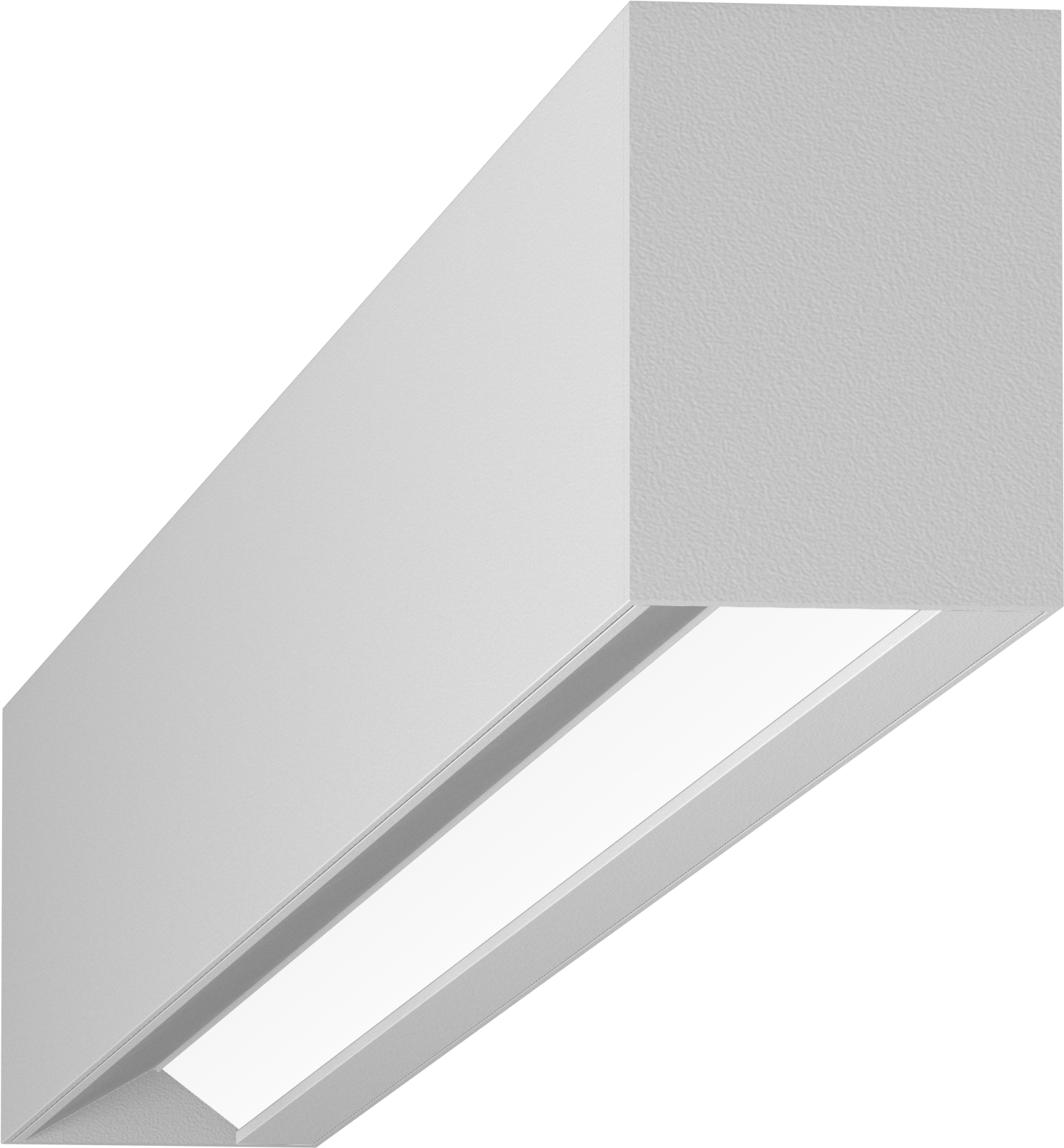

Profil 63 Asymmetrisch direkt
Beschreibung
Optional:
Treiber Dali dimmbar, Pendelleuchte, Farbe weißaluminium RAL 9006 oder schwarz RAL 9005
Profillänge A 561mm
| 9 W | 1050lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.05613080095.2631 |
| 9 W | 1150lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.05614080095.2631 |
| 16 W | 1850lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.05613080165.2631 |
| 16 W | 1950lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.05614080165.2631 |
| 28 W | 3100lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.05613080285.2631 |
| 28 W | 3300lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.05614080285.2631 |
Profillänge A 841mm
| 14 W | 1650lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.08413080145.2631 |
| 14 W | 1750lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.08414080145.2631 |
| 23 W | 2700lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.08413080235.2631 |
| 23 W | 2850lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.08414080235.2631 |
| 43 W | 4600lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.08413080435.2631 |
| 43 W | 4800lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.08414080435.2631 |
Profillänge A 1121mm
| 18 W | 2150lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.11213080185.2631 |
| 18 W | 2250lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.11214080185.2631 |
| 32 W | 3650lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.11213080325.2631 |
| 32 W | 3800lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.11214080325.2631 |
| 57 W | 6150lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.11213080575.2631 |
| 57 W | 6450lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.11214080575.2631 |
Profillänge A 1401mm
| 23 W | 2900lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.140134080235.2631 |
| 23 W | 3050lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.140144080235.2631 |
| 40 W | 4450lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.140134080405.2631 |
| 40 W | 4650lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.140144080405.2631 |
| 71 W | 7700lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.140134080715.2631 |
| 71 W | 8100lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.140144080715.2631 |
Profillänge A 1681mm
| 26 W | 3350lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.168134080265.2631 |
| 26 W | 3550lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.168144080265.2631 |
| 48 W | 5450lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.168134080485.2631 |
| 48 W | 5750lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.168144080485.2631 |
| 87 W | 9200lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.168134080875.2631 |
| 87 W | 9700lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.168144080875.2631 |
Profillänge A 1961mm
| 33 W | 3850lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.196134080335.2631 |
| 33 W | 4050lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.196144080335.2631 |
| 56 W | 6350lm | 3000k | CRI>80 | E | L90/B10 60.000h | 63.196134080565.2631 |
| 56 W | 6700lm | 4000k | CRI>80 | E | L90/B10 60.000h | 63.196144080565.2631 |
| 99 W | 10750lm | 3000k | CRI>80 | E | L80/B10 75.000h | 63.196134080995.2631 |
| 99 W | 11300lm | 4000k | CRI>80 | E | L80/B10 75.000h | 63.196144080995.2631 |
Technische Daten
