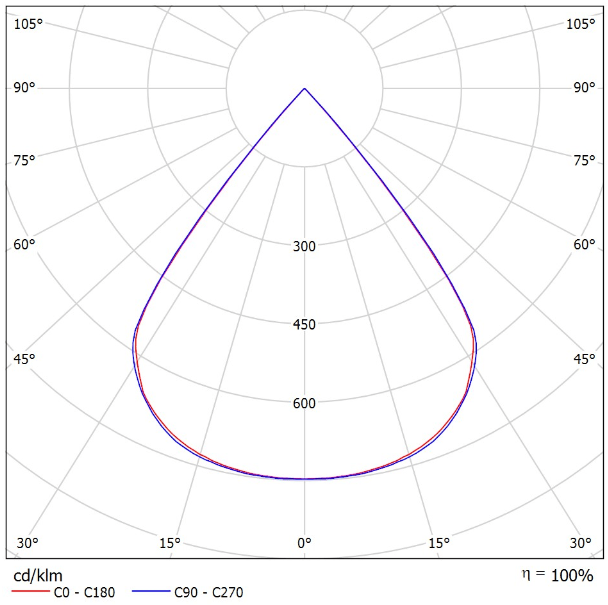

LED Einbauleuchte, Lichtverteilung symmetrisch, direkt, Gehäuse aus Aluminium pulverbeschichtet, mit Dark Light Optik schwarz UGR<19, Treiber nicht dimmbar extern mit Verbindungsleitung, Farbe weiß RAL 9016

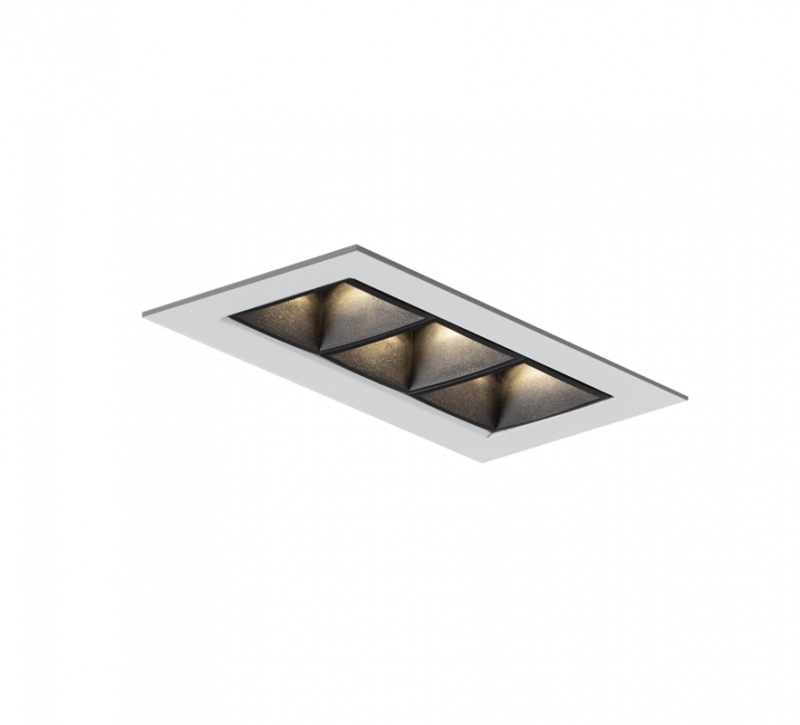

DELQ 61
Beschreibung
Optional:
Treiber Dali dimmbar, Dark Light Optik weiß, Farbe weißaluminium RAL 9006 oder schwarz RAL 9005
Außenmaß 100x61mm
| 7,7 W | 700lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01003090075.2531 |
| 7,7 W | 750lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01004090075.2531 |
| 11 W | 940lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01003090115.2531 |
| 11 W | 1010lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01004090115.2531 |
Außenmaß 140x61mm
| 10,4 W | 1290lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01403090105.2531 |
| 10,4 W | 1130lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01404090105.2531 |
| 14,9 W | 1410lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01403090145.2531 |
| 14,9 W | 1520lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01404090145.2531 |
Außenmaß 180x61mm
| 13,8 W | 1400lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01803090135.2531 |
| 13,8 W | 1510lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01804090135.2531 |
| 19,6 W | 1880lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.01803090195.2531 |
| 19,6 W | 2030lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.01804090195.2531 |
Außenmaß 220x61mm
| 17 W | 1750lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.02203090175.2531 |
| 17 W | 1890lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.02204090175.2531 |
| 24 W | 2350lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.02203090245.2531 |
| 24 W | 2530lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.02204090245.2531 |
Außenmaß 260x61mm
| 20,1 W | 2100lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.02603090205.2531 |
| 20,1 W | 2270lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.02604090205.2531 |
| 28,8 W | 2820lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.02603090285.2531 |
| 29,1 W | 3040lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.02604090295.2531 |
Außenmaß 300x61mm
| 23,3 W | 2460lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03003090235.2531 |
| 23,6 W | 2650lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03004090235.2531 |
| 34,2 W | 3290lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03003090345.2531 |
| 34,6 W | 3550lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03004090345.2531 |
Außenmaß 340x61mm
| 26,5 W | 2810lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03403090265.2531 |
| 26,7 W | 3020lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03404090265.2531 |
| 38,8 W | 3770lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03403090385.2531 |
| 39,5 W | 4060lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03404090385.2531 |
Außenmaß 380x61mm
| 30,2 W | 3160lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03803090305.2531 |
| 30,2 W | 3400lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03804090305.2531 |
| 43 W | 4240lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.03803090435.2531 |
| 43 W | 4560lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.03804090435.2531 |
Außenmaß 420x61mm
| 33,9 W | 3510lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.04203090335.2531 |
| 33,9 W | 3780lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.04204090335.2531 |
| 48,3 W | 4710lm | 3000k | CRI>90 | F | L80/B10 50.000h | 05.04203090485.2531 |
| 48,3 W | 5070lm | 4000k | CRI>90 | F | L80/B10 50.000h | 05.04204090485.2531 |

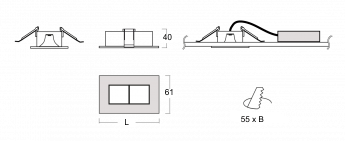

Technische Daten
| Außenmaß L 100x61mm | Deckenausschnitt B 90x55mm |
| Außenmaß L 140x61mm | Deckenausschnitt B 130x55mm |
| Außenmaß L 180x61mm | Deckenausschnitt B 170x55mm |
| Außenmaß L 220x61mm | Deckenausschnitt B 210x55mm |
| Außenmaß L 260x61mm | Deckenausschnitt B 250x55mm |
| Außenmaß L 300x61mm | Deckenausschnitt B 290x55mm |
| Außenmaß L 340x61mm | Deckenausschnitt B 330x55mm |
| Außenmaß L 380x61mm | Deckenausschnitt B 370x55mm |
| Außenmaß L 420x61mm | Deckenausschnitt B 410x55mm |
| Einbautiefe | 60mm |
