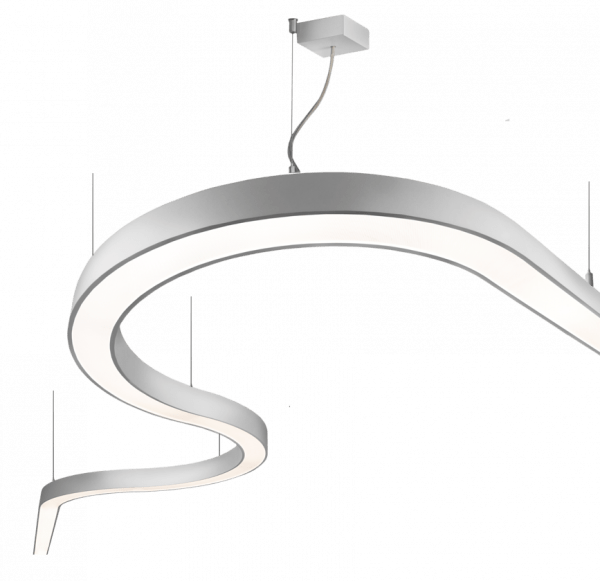

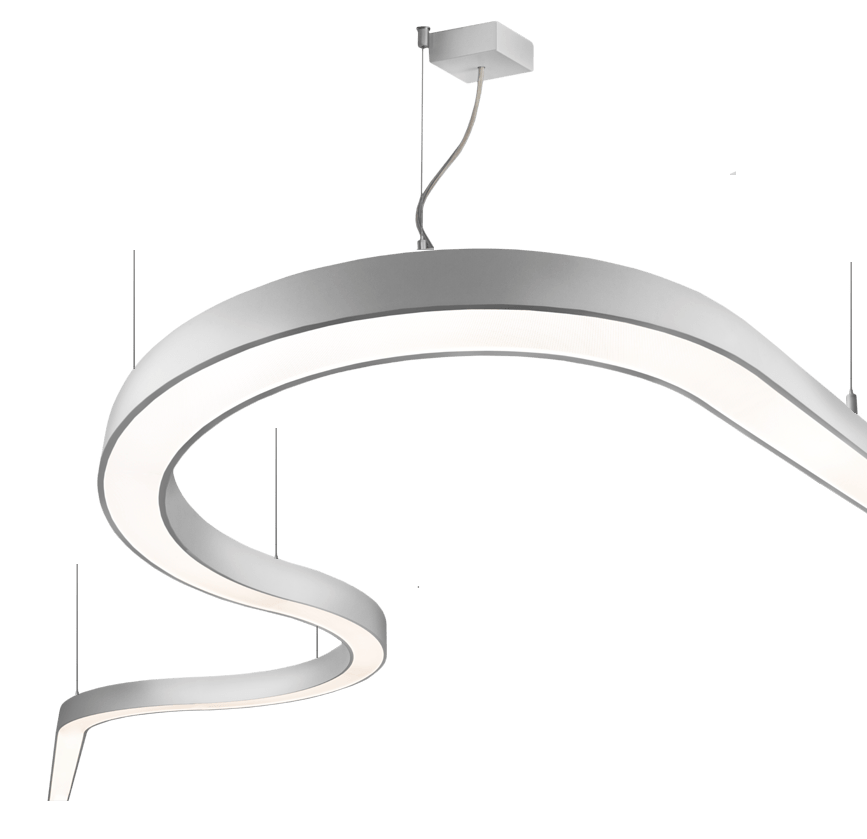

LED Pendelleuchte in Freiform, Lichtverteilung symmetrisch, direkt, Bestückung pro laufenden Meter 22W 2190lm, Gehäuse aus stranggepresstem Aluminium pulverbeschichtet, Passive Kühlung aus Aluminium, mit opaler Abdeckung, Treiber nicht dimmbar im Gehäuse integriert, Farbe weiß RAL 9016
PEL 625 Opal direkt
Beschreibung
Optional:
Treiber Dali dimmbar, Lichtverteilung direkt/indirekt, Microprismatische Abdeckung UGR<19, Farbe weißaluminium RAL 9006 oder schwarz RAL 9005
Lineare Module 580mm
| 7,6 W | 780lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.05803080075.2031 |
| 7,6 W | 820lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.05804080075.2031 |
| 11 W | 1110lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.05803080115.2031 |
| 11 W | 1160lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.05804080115.2031 |
Lineare Module 860mm
| 11,4 W | 1170lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.08603080115.2031 |
| 11,4 W | 1230lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.08604080115.2031 |
| 16,5 W | 1660lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.08603080165.2031 |
| 16,5 W | 1750lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.08604080165.2031 |
Lineare Module 1140mm
| 15,1 W | 1570lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.11403080155.2031 |
| 15,1 W | 1650lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.11404080155.2031 |
| 22 W | 2220lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.11403080225.2031 |
| 22 W | 2330lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.11404080225.2031 |
Lineare Module 1420mm
| 18,9 W | 1960lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.14203080185.2031 |
| 18,9 W | 2060lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.14204080185.2031 |
| 27,4 W | 2780lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.14203080275.2031 |
| 27,4 W | 2920lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.14204080275.2031 |
Lineare Module 1700mm
| 22,7 W | 2350lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.17003080225.2031 |
| 22,7 W | 2470lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.17004080225.2031 |
| 32,9 W | 3330lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.17003080325.2031 |
| 32,9 W | 3500lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.17004080325.2031 |
Lineare Module 1980mm
| 26,5 W | 2740lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.19803080265.2031 |
| 26,5 W | 2880lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.19804080265.2031 |
| 38,4 W | 3890lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.19803080385.2031 |
| 38,4 W | 4080lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.19804080385.2031 |
Lineare Module 2260mm
| 30,2 W | 3140lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.22603080305.2031 |
| 30,2 W | 3300lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.22604080305.2031 |
| 43,9 W | 4440lm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.22603080435.2031 |
| 43,9 W | 4670lm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.22604080435.2031 |

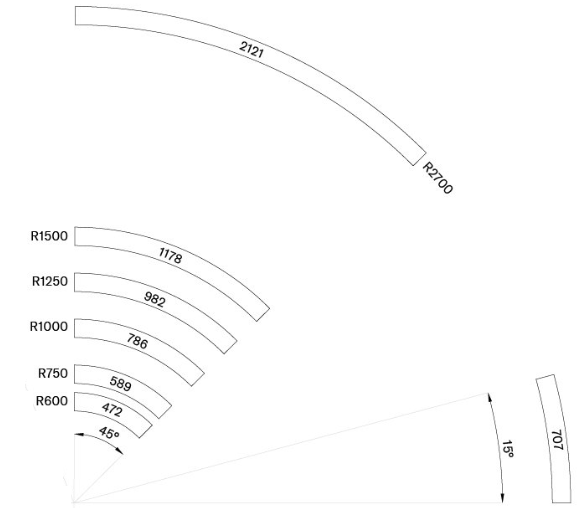

Gebogene Module 15°
| R2700 | 707mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.07073089995.2031 |
| R2700 | 707mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.07074089995.2031 |
Gebogene Module 45°
| R600 | 472mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.04723089995.2031 |
| R600 | 472mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.04724089995.2031 |
| R750 | 589mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.04723089995.2031 |
| R750 | 589mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.04724089995.2031 |
| R1000 | 786mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.07863089995.2031 |
| R1000 | 786mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.07864089995.2031 |
| R1250 | 982mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.09823089995.2031 |
| R1250 | 982mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.09824089995.2031 |
| R1500 | 1178mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.11783089995.2031 |
| R1500 | 1178mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.11784089995.2031 |
| R2700 | 2121mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.21213089995.2031 |
| R2700 | 2121mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.21214089995.2031 |

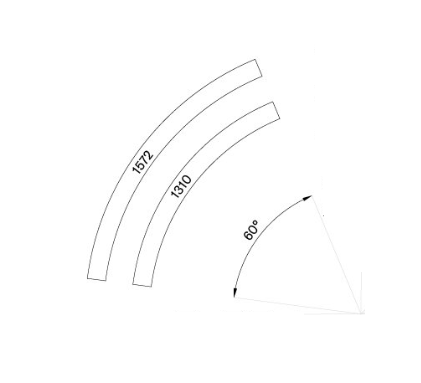

Gebogene Module 60°
| R1250 | 1310mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.13103089995.2031 |
| R1250 | 1310mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.13104089995.2031 |
| R1500 | 1572mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.15723089995.2031 |
| R1500 | 1572mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.15724089995.2031 |
Gebogene Module 90°
| R600 | 943mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.09433089995.2031 |
| R600 | 943mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.09434089995.2031 |
| R750 | 1178mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.11873089995.2031 |
| R750 | 1178mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.11874089995.2031 |
| R1000 | 1671mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.16713089995.2031 |
| R1000 | 1671mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.16714089995.2031 |
| R1250 | 1964mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.19643089995.2031 |
| R1250 | 1964mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.19644089995.2031 |
| R1500 | 2357mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.23573089995.2031 |
| R1500 | 2357mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.23574089995.2031 |

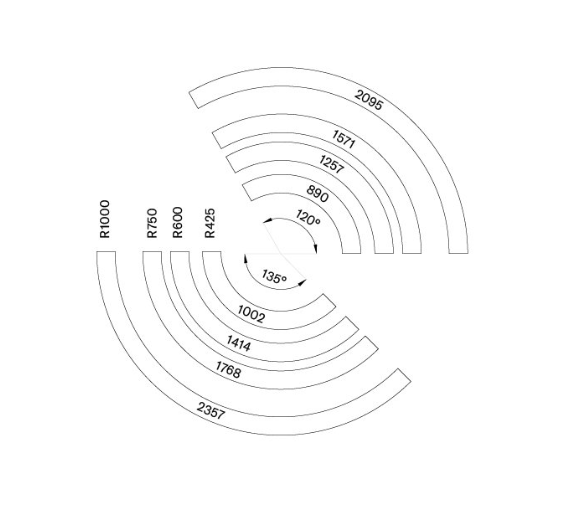

Gebogene Module 120°
| R245 | 890mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.08903089995.2031 |
| R245 | 890mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.08904089995.2031 |
| R600 | 1257mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.12573089995.2031 |
| R600 | 1257mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.12574089995.2031 |
| R750 | 1571mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.15773089995.2031 |
| R750 | 1571mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.15774089995.2031 |
| R1000 | 2095mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.20953089995.2031 |
| R1000 | 2095mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.20954089995.2031 |
Gebogene Module 135°
| R245 | 1002mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.10023089995.2031 |
| R245 | 1002mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.10024089995.2031 |
| R600 | 1414mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.14143089995.2031 |
| R600 | 1414mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.14144089995.2031 |
| R750 | 1768mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.17683089995.2031 |
| R750 | 1768mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.17684089995.2031 |
| R1000 | 2357mm | 3000k | CRI>80 | F | L80/B20 50.000h | 79.23513089995.2031 |
| R1000 | 2357mm | 4000k | CRI>80 | F | L80/B20 50.000h | 79.23514089995.2031 |
Technische Daten
| Breite | 100mm |
| Höhe | 87mm |
